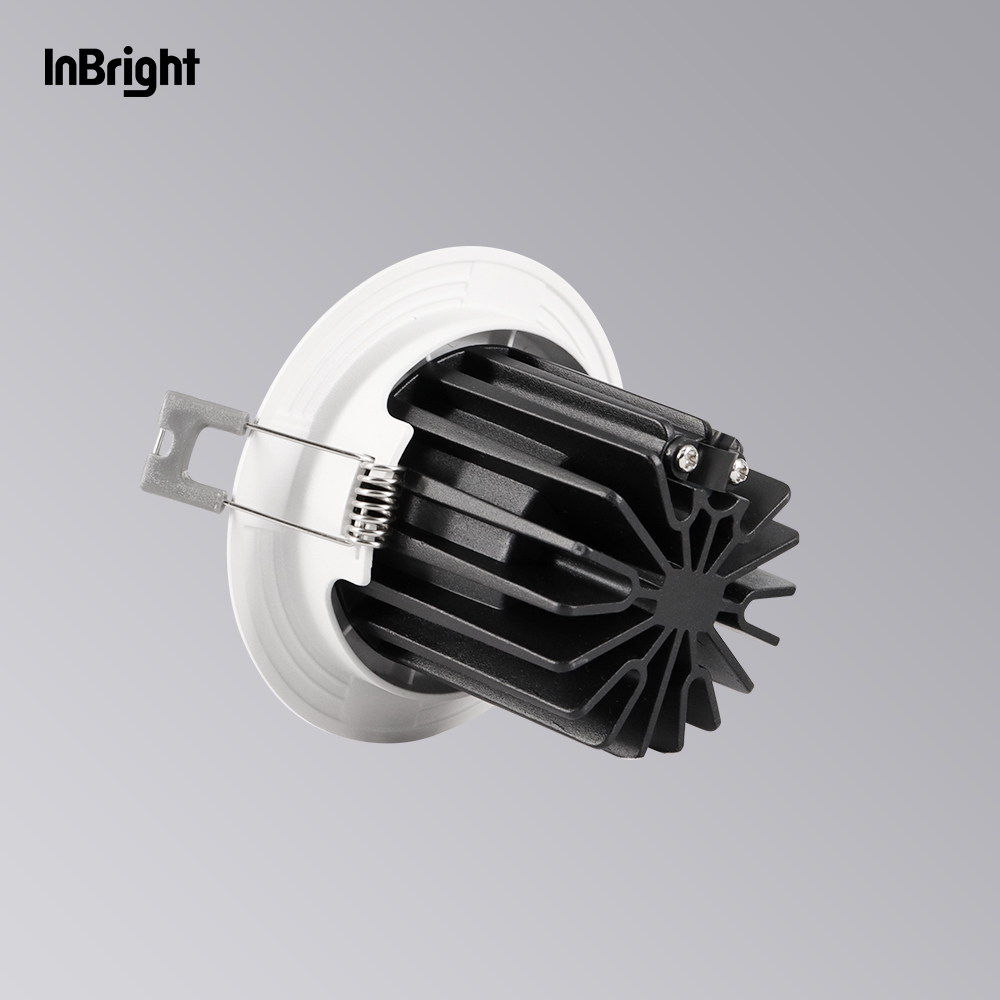

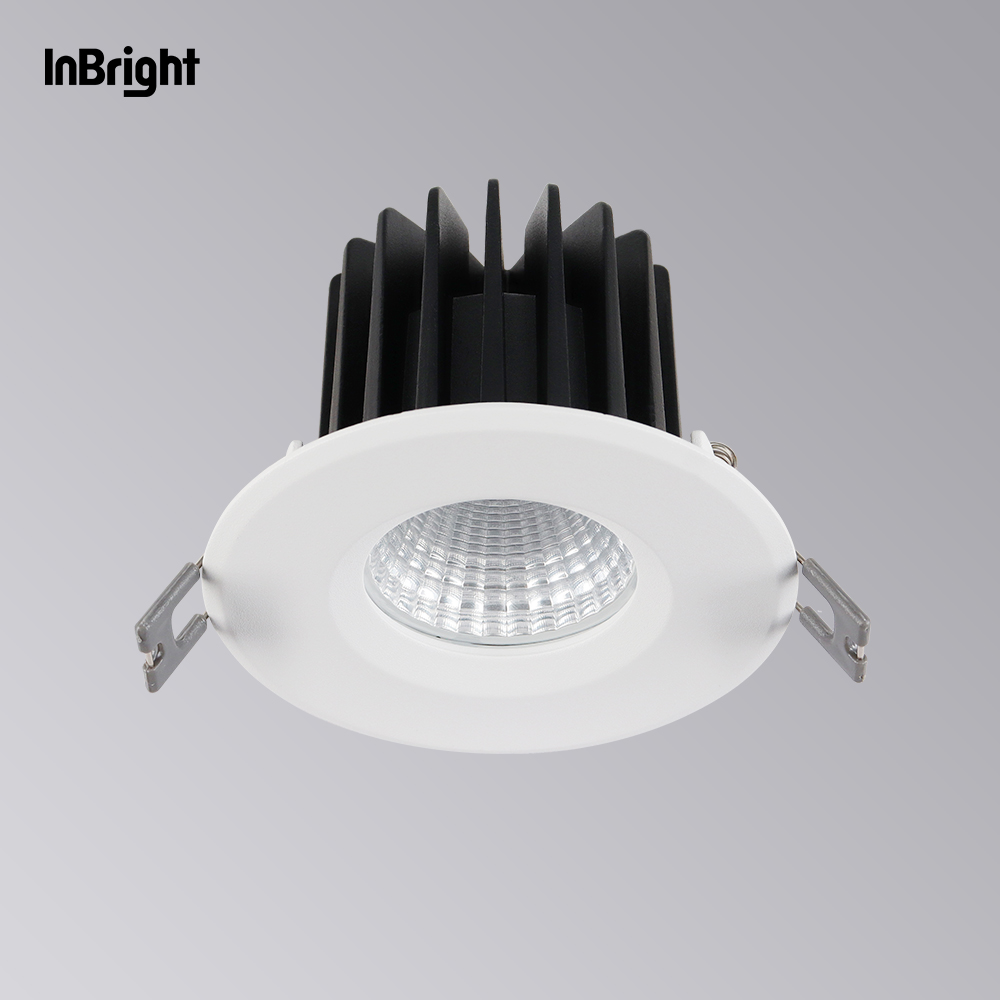

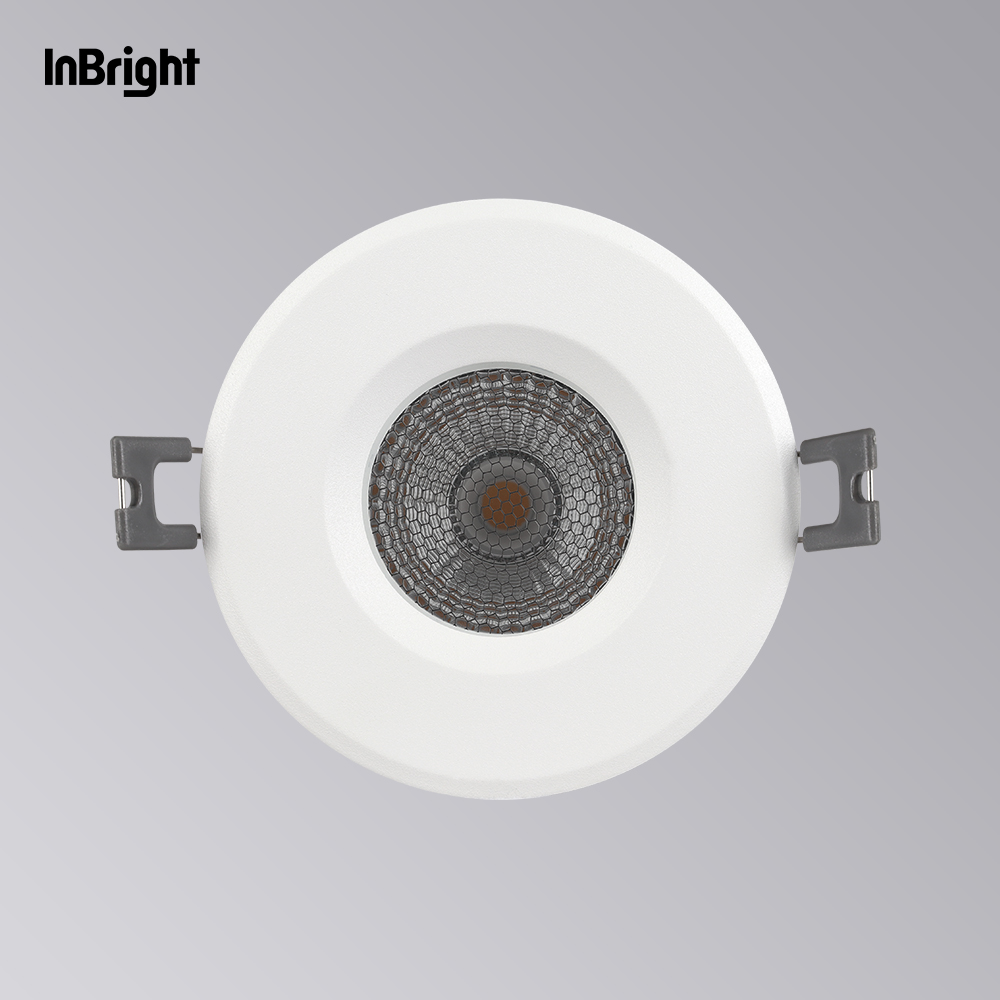

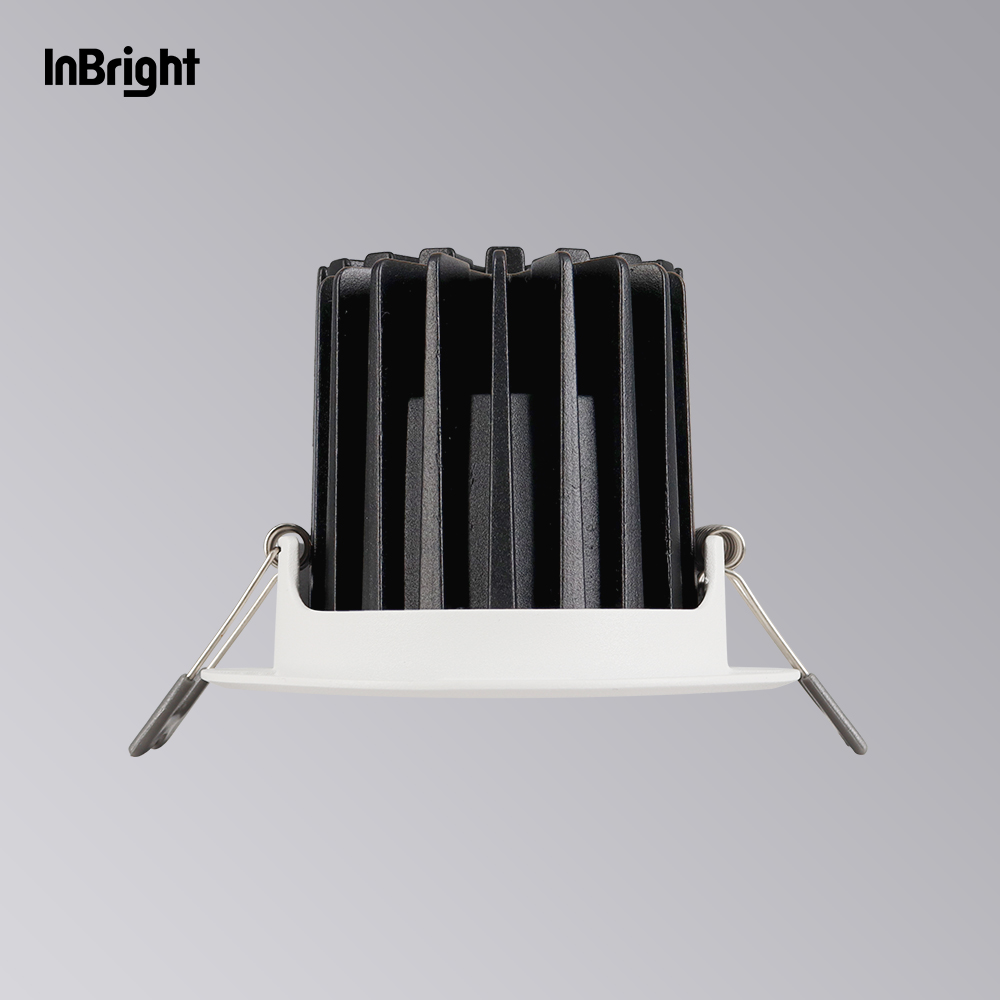

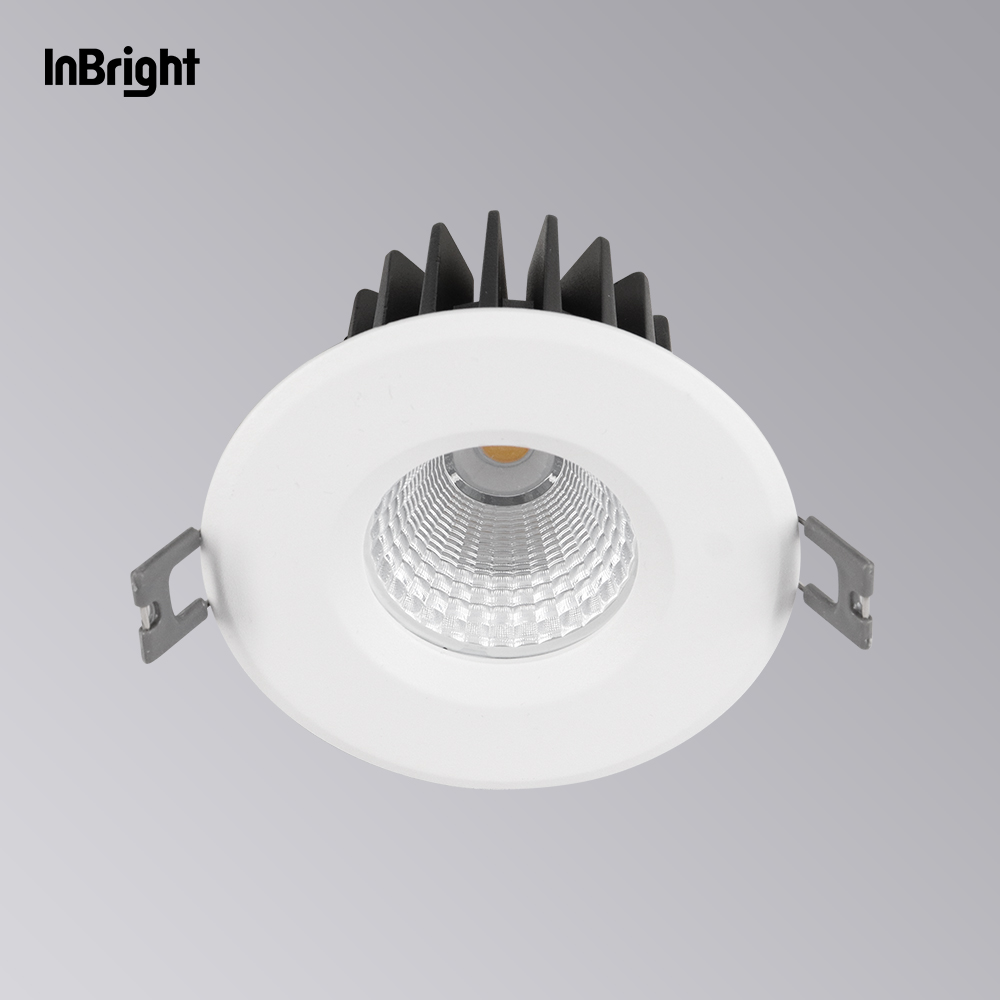

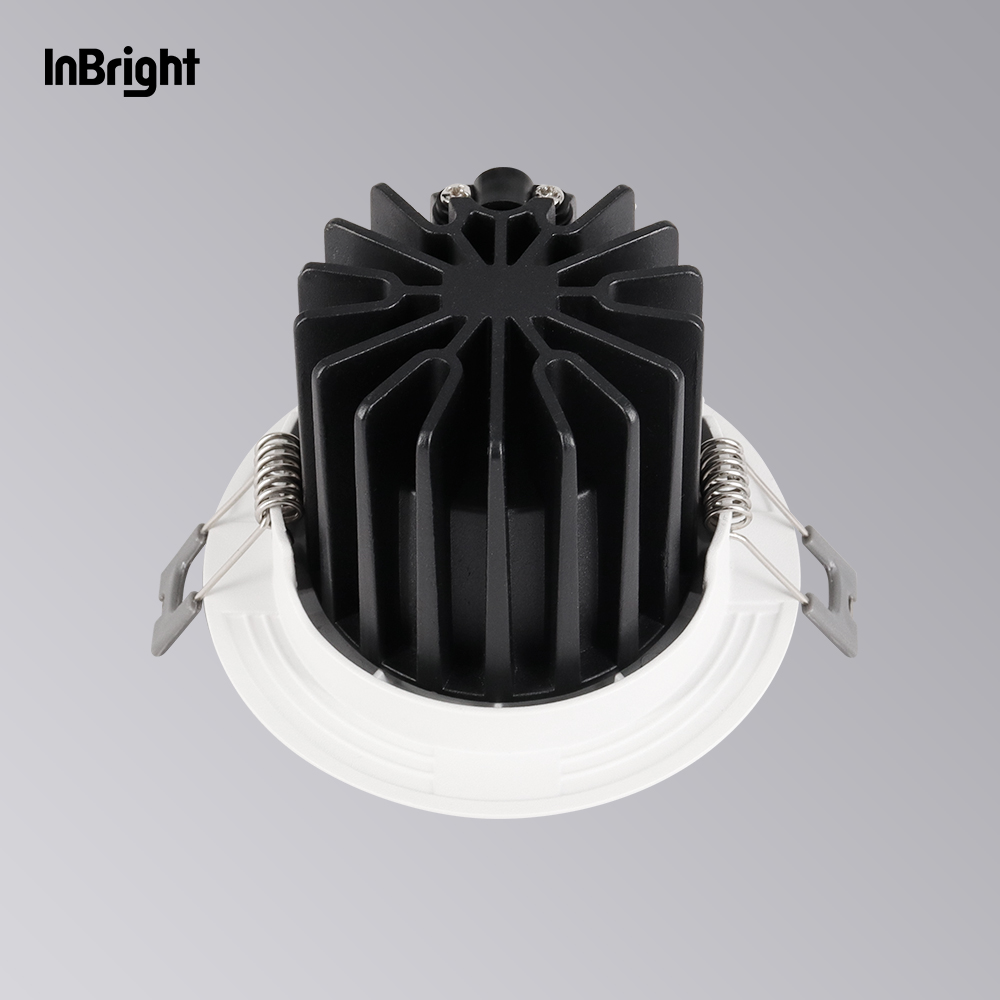

10W,Cutout 80mm,Height 48mm,Beam 15°| 24°|38°|45°|60°,100lm/W,UGR<13,IP65,Safety Glass Diffuser,Honeycomb Louver Optional,Flat Trim Recessed LED Downlight

Model No

IBSP112CT085H48

Diemnsion

Ø100mm×H48mm

Cutout

80mm

Application

Guestroom & Suite

Restaurant

Corridor & Hallway

Bathroom & SPA

Power

10W

Beam Angle

15°24°38°45°60°

Color Temp

2700K3000K3500K4000K5000K5700K6500K

CRI

Ra.80Ra.90Ra.98

Power Factor

PF>0.5PF>0.9

Working Voltage

AC200-240VAC100-277V

IP Grade

IP20IP65

Dimming Function

ON/OFFTriac Dimming0-10V DimmingDALI Dimming

LED Chip Optional

CREEBridgeluxHongliPhilipsOsram

LED Driver Optional

EagelriseLifudOsram

Installation

Recessed Mount

Quantity:	- +

Add To Cart Inquiry

Description

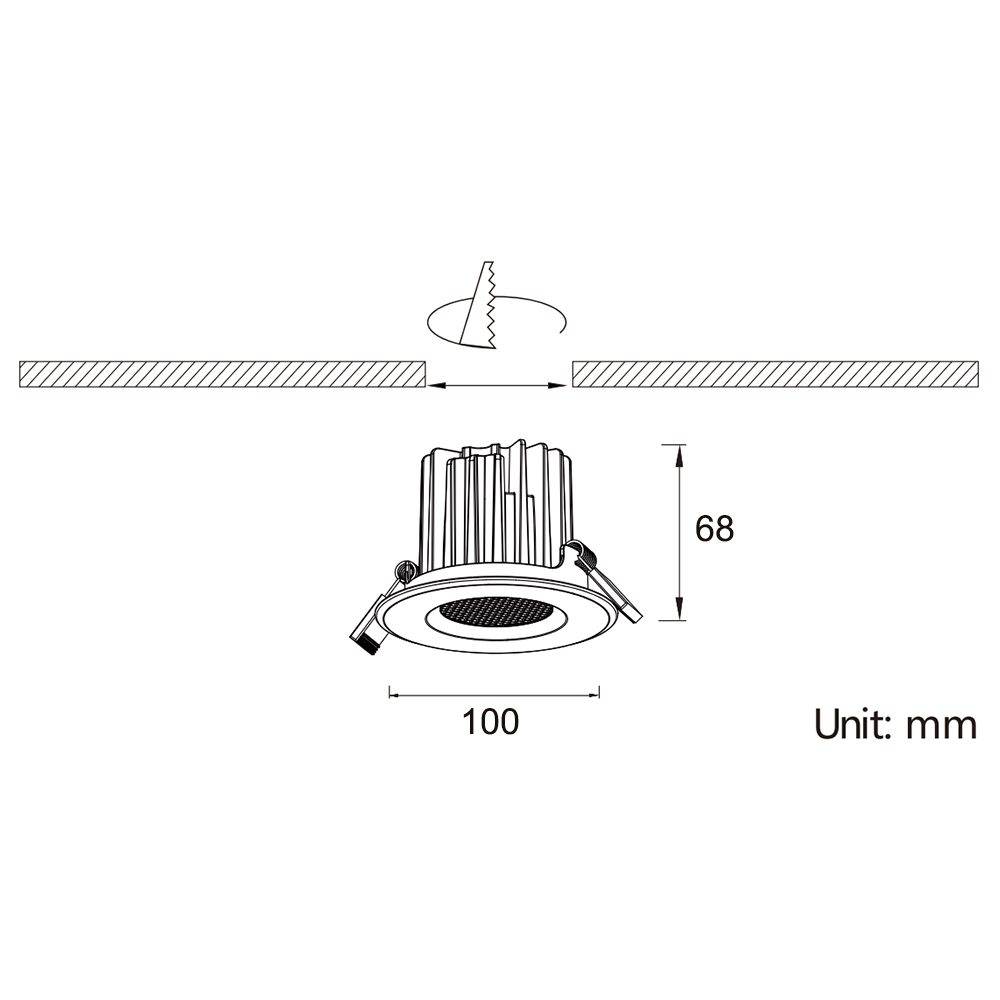

Line Art
Datasheet
IES

Model No.	Watts	Lamp Outer Size	Cutout Hole Size	Beam Angle
IBSP112CT085H48	10W	Ø100mm×H48mm (Short)	Ø80mm	Reflector 15°\| 24°\|38°\|45°\|60° Fixed
IBSP112CT085H68	15W	Ø100mm×H68mm	Ø80mm	Reflector 15°\| 24°\|38°\|45°\|60° Lens15°\| 24°\|38° Fixed
IBSP112CT085H96	25W	Ø100mm×H96mm	Ø80mm	Reflector 15°\| 24°\|38°\|45°\|60° Fixed

Model No.

Watts

Lamp Outer Size

Cutout Hole Size

Beam Angle

IBSP112CT085H48

10W

Ø100mm×H48mm

(Short)

Ø80mm

Reflector 15°| 24°|38°|45°|60°

Fixed
