Click To Enlarge

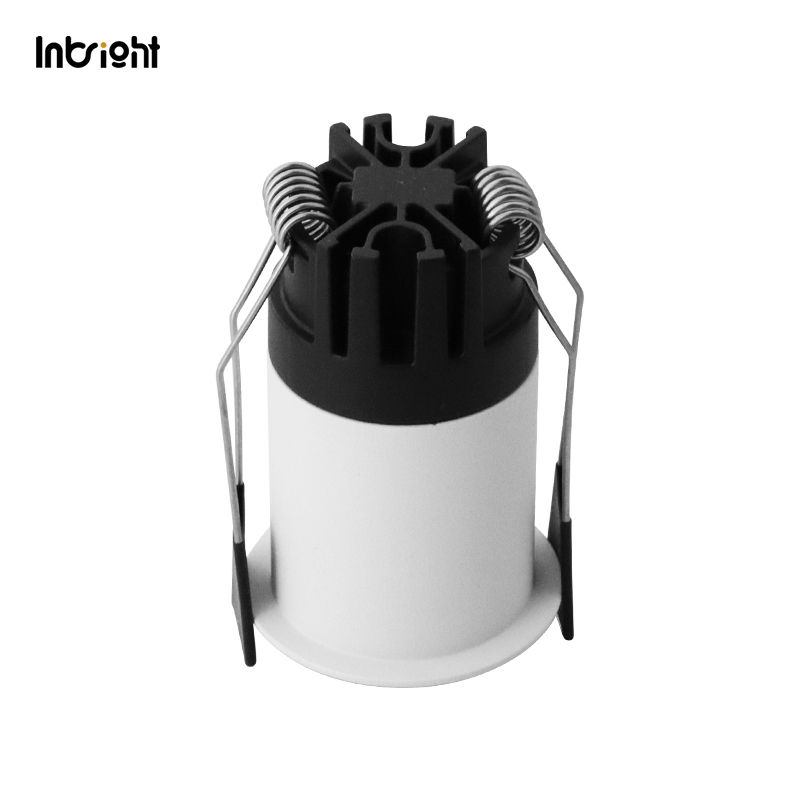

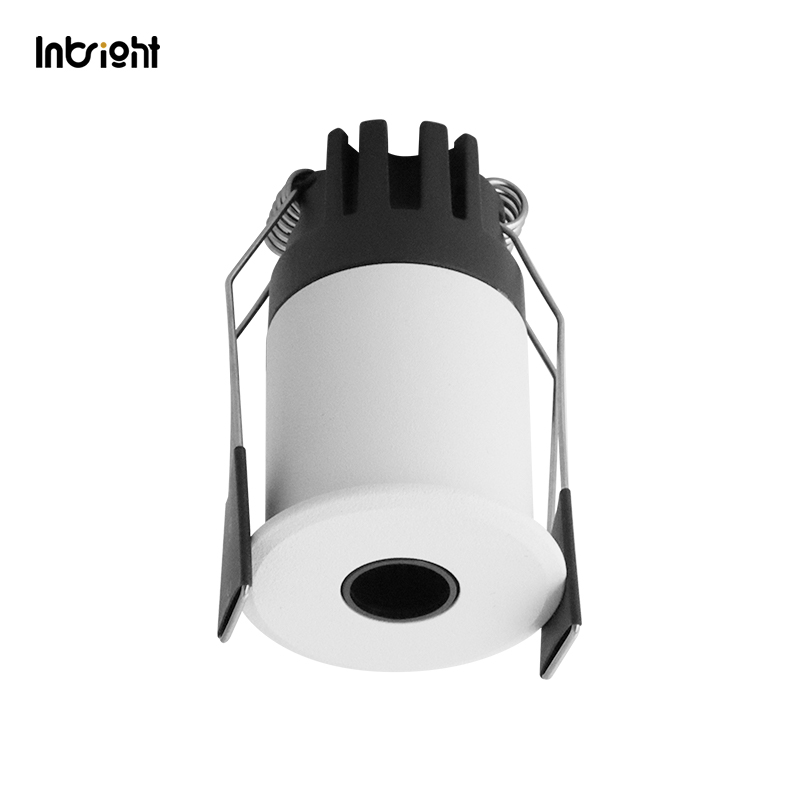

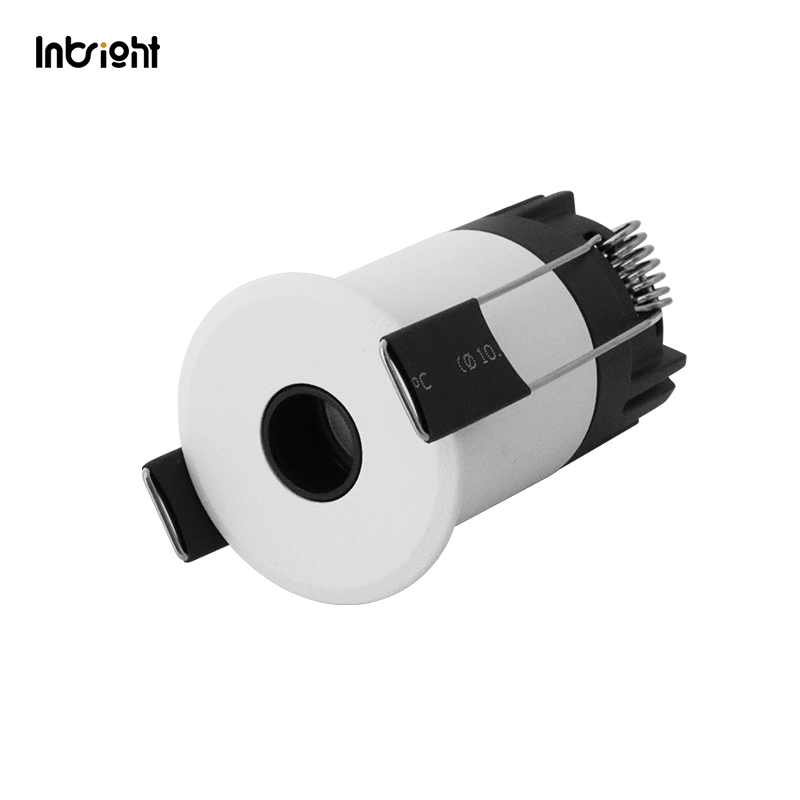

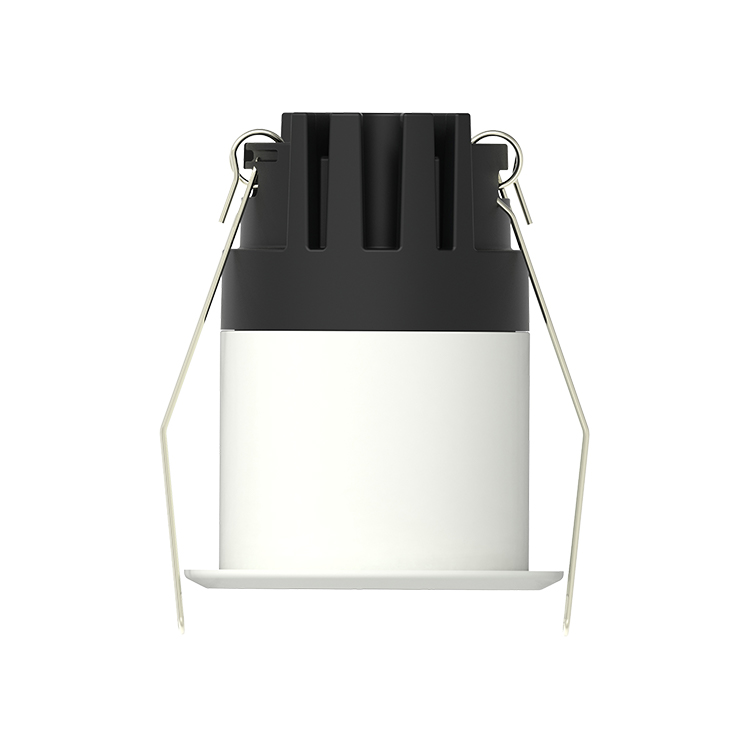

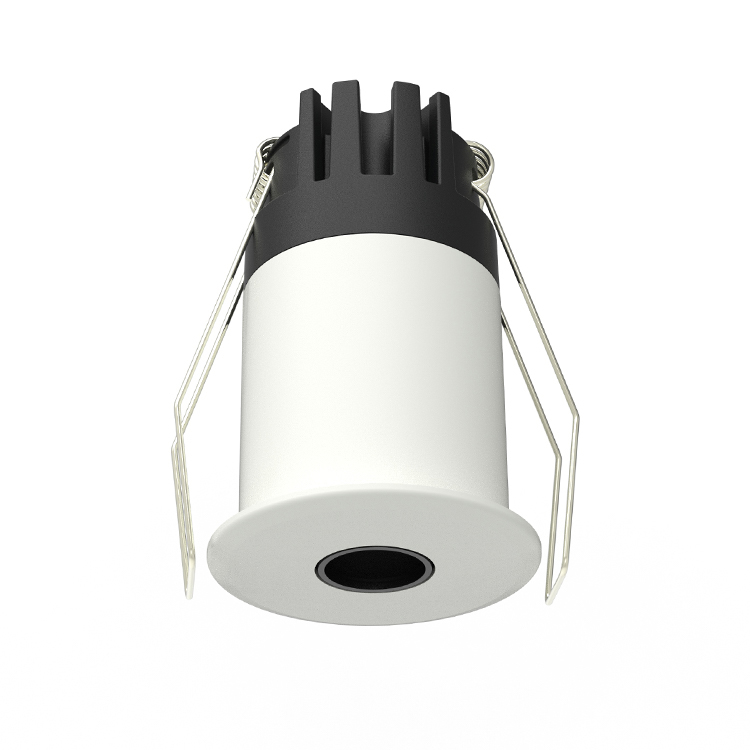

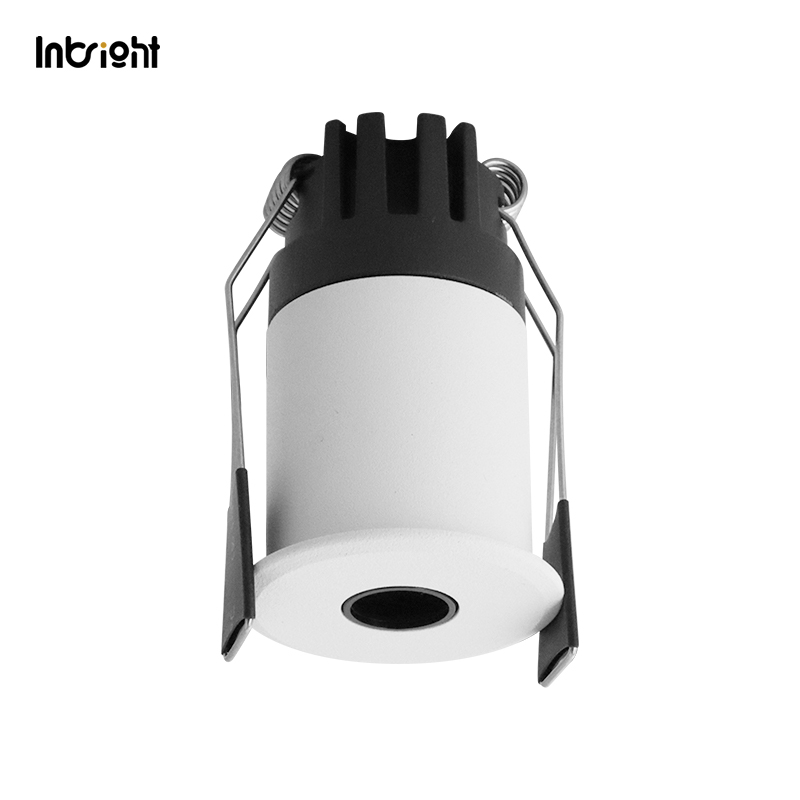

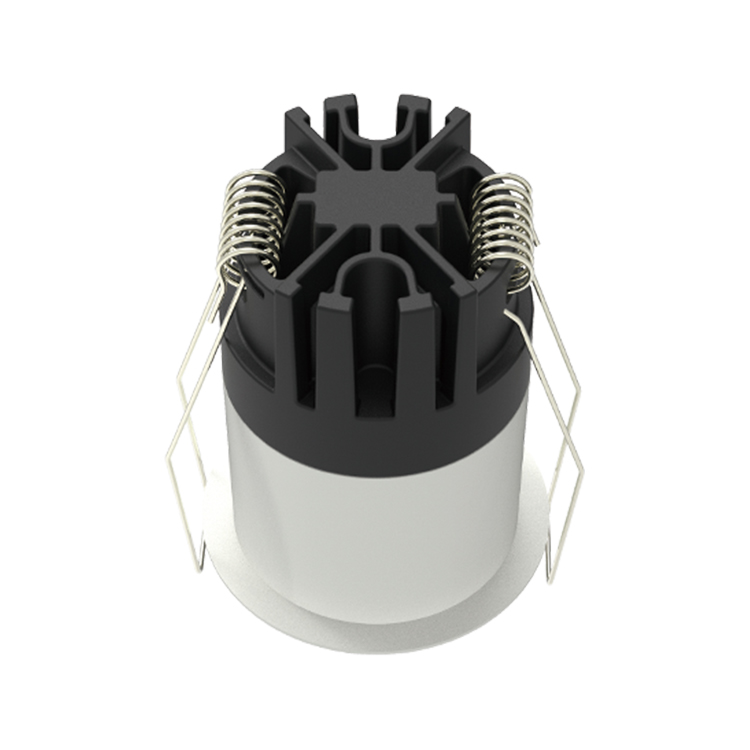

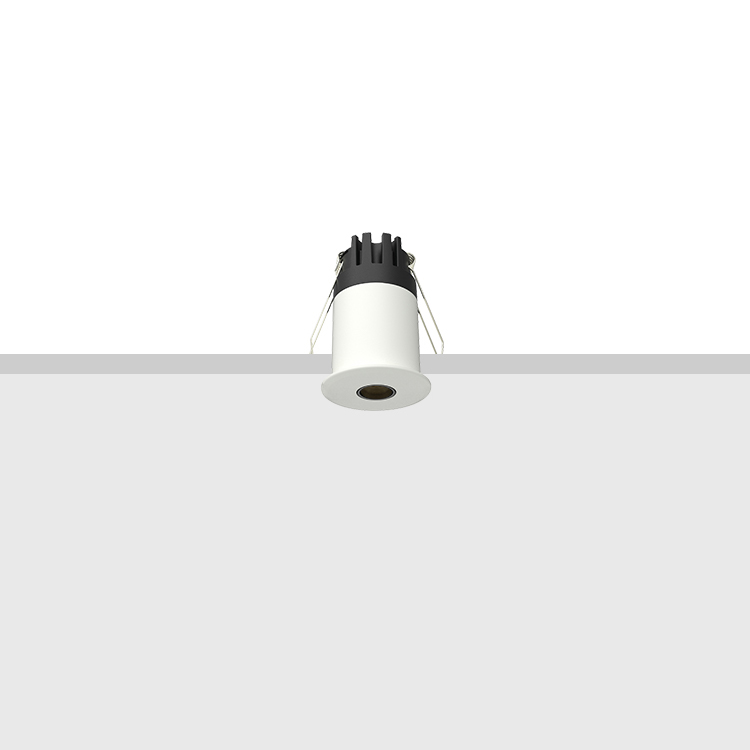

7W,Cutout 42mm,Beam15°/24°/38°/50°,White/Black Trim,Reflector Changeable,Curve Fixed Mini Recessed LED Downlight

Model No

IBSP221CT042PIN

Diemnsion

Ø50×H76mm

Cutout

42mm

Application

Corridor & Hallway

Display Cases

Power

3-7W

Beam Angle

24°36°

Color Temp

2700K3000K3500K4000K5000K5700K6500K

CRI

Ra.80Ra.90Ra.98

Power Factor

PF>0.5PF>0.9

Working Voltage

AC200-240VAC100-277V

IP Grade

IP54

Dimming Function

ON/OFFTriac Dimming0-10V DimmingDALI Dimming

LED Chip Optional

CREEBridgeluxHongliPhilipsOsram

LED Driver Optional

EagelriseLifudOsram

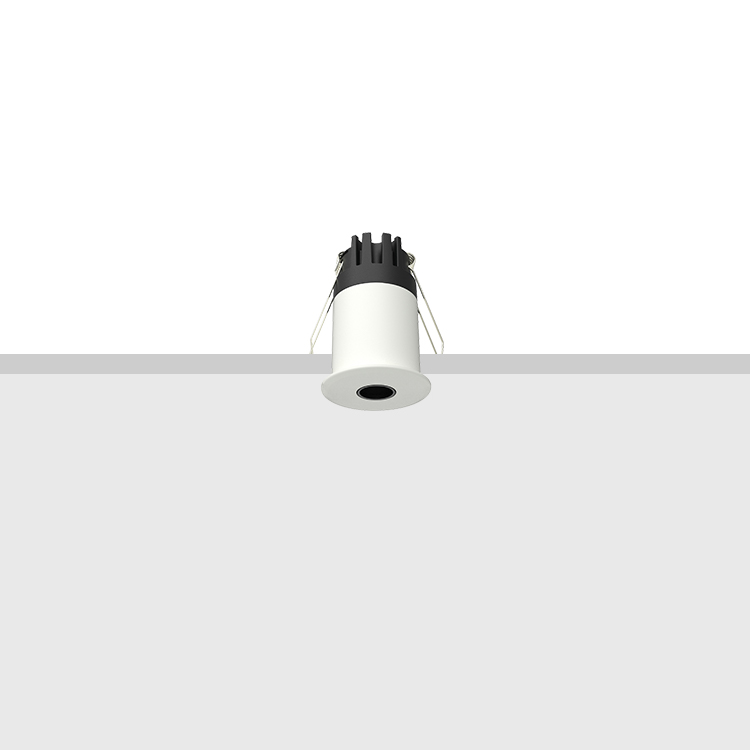

Installation

Recessed Mount

Quantity:	- +

Add To Cart Inquiry

Description
Line Art
Datasheet
IES

Model No.	Watts	DxH(mm)	Cutout(mm)	Lumen(lm/w)	Beam Angle
IBSP221CT042.(A)	3-7W	Ø50×H63mm	Ø42mm	70-90	15°\|24°\|38°\|50°
IBSP221CT042.(B)	3-7W	Ø50×H67mm	Ø42mm	70-90	15°\|24°\|38°\|50°
IBSP221CT042.(C)	3-7W	Ø50×H76mm	Ø42mm	70-90	15°\|24°\|38°\|50°
IBSP221CT042PIN	3-7W	Ø50×H76mm	Ø42mm	40-50	24°\|36°

IBSP221 Datasheet.pdf

08 IBSP221 Installation Instruction.pdf

IBSP221CT042PIN-24°-7W-40K 原装普瑞 C6-莱福德 7W.pdf

IBSP221CT042PIN-36°-7W-40K 原装普瑞 C6-莱福德 7W.pdf
